Zone Offroad Products ZONF53 Zone 6 Suspension Lift Kit
2015-19 F150 6 Suspension Lift System

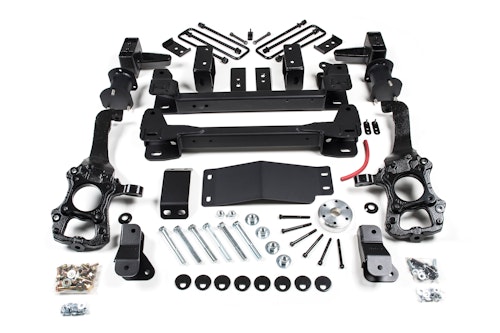

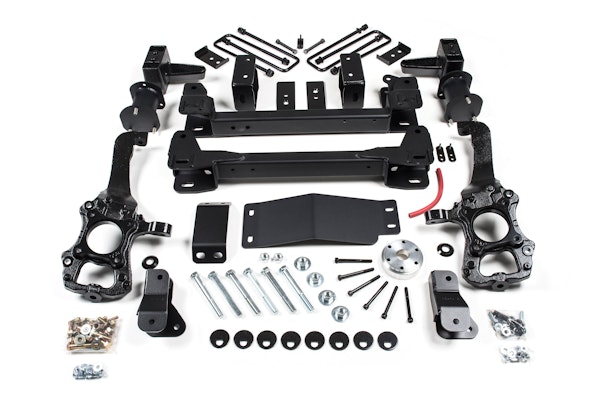

Take your F150 to new heights with this 6" lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers and rear block kit to level out the stance. Get the look, performance, and capability your truck deserves with clearance for up to 37" tires.
  • High strength crossmembers to correct lower control arm positioning
  • Ductile iron steering knuckles to correct steering geometry and maintain ESC system compatibility
  • Top mounted strut spacers to provide lift and install easily
  • Differential skid plate for improved offroad protection
  • Rear lift blocks and u-bolts to lift and level the stance
  • Sway bar, brake line and bump stop relocation brackets to correct operating angles

Information:

18" or larger diameter wheels required. Stock 17"/18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60R20 tire. 18" wheels with 5-5.5" of backspacing should be test fit prior to mounting tires to ensure proper tie rod end clearance. 37x12.50 tires may require some trimming. Kit includes a 5" rear block kit (#F2639) that typically nets a slight tail high stance. A 4" rear block kit (#F2419) is available in the options if a more level stance is preferred. Models equipped with Auto 4wd may require front driveshaft replacement. Requires frame bracket modification. Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift driveline angles and avoid / eliminate driveshaft vibration. Will NOT work on Diesel Models.

Application Summary:

Year Make/Model
2015-2020 Ford F-150

This item is a package with the following components:

Zone Offroad Products ZONF2604 Zone 6 Strut Spacer Box Kit

Zone Offroad Products ZONF2604 Zone 6 Stru..

Brand: Zone Offroad Products

Part Number: ZONF2604

$96.95

Zone Offroad Products ZONF2650 Zone Front Box Kit 3of4

Zone Offroad Products ZONF2650 Zone Front ..

Brand: Zone Offroad Products

Part Number: ZONF2650

$281.95

Zone Offroad Products ZONF2651 Zone Front Box Kit 4of4

Zone Offroad Products ZONF2651 Zone Front ..

Brand: Zone Offroad Products

Part Number: ZONF2651

$347.95

Zone Offroad Products ZONF2639 Zone 5in Rear Block Kit

Zone Offroad Products ZONF2639 Zone 5in Re..

Brand: Zone Offroad Products

Part Number: ZONF2639

$177.95

Zone Offroad Products ZONF2640 Zone Front Box Kit 1of4

Zone Offroad Products ZONF2640 Zone Front ..

Brand: Zone Offroad Products

Part Number: ZONF2640

$201.95

Zone Offroad Products ZONF2641 Zone Front Box Kit 2of4

Zone Offroad Products ZONF2641 Zone Front ..

Brand: Zone Offroad Products

Part Number: ZONF2641

$201.95

Attributes
Accommodates Factory Wheels See Notes
Adjustable No
Alternate Part Number ZONF53
Back Spacing 5.5"
Back Spacing 2 5.5"
Back Spacing 3 5.5"
California Proposition 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Country of Origin (Primary) US
Emission Code Legal US
Front Lift Height 6"
Front Lift Method Knuckle & Strut Spacer
GTIN 00810156366017
Hazardous Material Code N
Installation Difficulty 4 out of 5
Installation Time 9 hrs
Life Cycle Status Code Available to Order
Lift Type Lift Kit
Max Tire Size 37 x 12.5
Max Tire Size 2 37 x 12.5
Max Tire Size 3 37 x 12.5
NAFTA Preference Criterion Code B
Rear Lift Height 5"
Rear Lift Method Cast Blocks
Requires Metal Cutting No
Requires Welding No
SDR Required Flag N
Wheel Size 18 x 9
Wheel Size 2 20 x 9
Wheel Size 3 22 x 9
