Turn heads and drop jaws with this 5" Lift Kit for your truck that gives you clearance for tires up to 35". This kit has everything you need to raise and level your 4WD 2002 - 2005 Dodge Ram 1500 Truck. If you’re going to do it, do it right.
- Heavy-duty differential skid slate improves offroad protection
- High-strength, 1/4" steel construction crossmembers corrects lower control arm geometry
- High-strength, CNC machined, replacement Steering Knuckles improve strength while correcting steering angles
Information:
Fitment: Will NOT work with All-Wheel Drive models. Lift Block Selection: This lift kit is designed to provide 5" front and 3" rear lift over stock, however these trucks came from the factory with varying front/rear ride heights so additional rear modifications may be necessary to achieve desired vehicle stance. Wheels / Tires: Factory 17" wheels cannot be reinstalled with lift kit due to tie rod clearance. Follow recommended wheel/tire specifications to ensure tire/wheel clearance.Application Summary:
| Year | Make/Model |
|---|---|
| 2002-2005 | Dodge Ram 1500 |
This item is a package with the following components:
NEW!
Zone Offroad Products ZOND2600 Zone 4-6in ..
Brand: Zone Offroad Products
Part Number: ZOND2600
02-05 Dodge 1500 4-6in Frnt Bx Kt (1of4)..
$199.95
NEW!
Zone Offroad Products ZOND2601 Zone 4-6in ..
Brand: Zone Offroad Products
Part Number: ZOND2601
02-05 Dodge 1500 4-6in Frnt Bx Kt (2of4)..
$199.95
NEW!

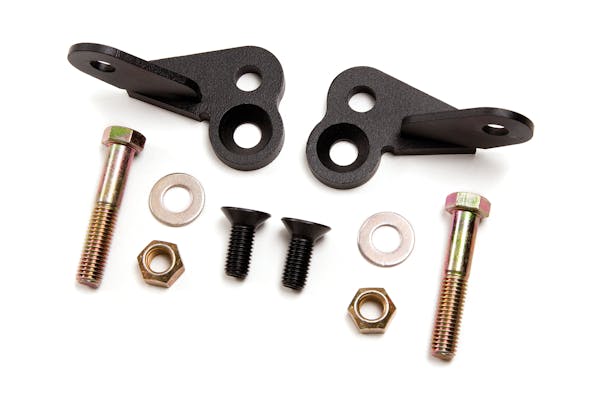

Zone Offroad Products ZOND5201 Zone Shock ..
Brand: Zone Offroad Products
Part Number: ZOND5201
02-05 Dodge Ram 1500 Shock ExtensionThese shock extensions are designed for Dodge Ram 1500 trucks f..
$43.95
NEW!
Zone Offroad Products ZOND2500 Zone Box Ki..
Brand: Zone Offroad Products
Part Number: ZOND2500
02-05 Dodge 1500 Box Kit (3of4)..
$241.95
NEW!
Zone Offroad Products ZOND2501 Zone Box Ki..
Brand: Zone Offroad Products
Part Number: ZOND2501
02-05 Dodge 1500 Box Kit (4of4)..
$378.95
NEW!
Zone Offroad Products ZOND2509 Zone Rear B..
Brand: Zone Offroad Products
Part Number: ZOND2509
02-05 Dodge 1500 Rear Box Kit..
$58.95
| Attributes | |
| Accommodates Factory Wheels | No |
| Adjustable | No |
| Alternate Part Number | ZOND14 |
| Back Spacing | 4.5" |
| Back Spacing 2 | 4.5" |
| Back Spacing 3 | 5" |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Finish | Powdercoat |
| Front Lift Height | 5" |
| Front Lift Method | Knuckle & Drop Cross-Member |
| GTIN | 00810156362644 |
| Hazardous Material Code | N |
| Installation Difficulty | 3 out of 5 |
| Installation Time | 7 hrs |
| Life Cycle Status Code | Available to Order |
| Lift Type | Lift Kit |
| Max Tire Size | 35 x 12.5 |
| Max Tire Size 2 | 35 x 12.5 |
| Max Tire Size 3 | 35 x 12.5 |
| NAFTA Preference Criterion Code | B |
| Rear Lift Height | 3" |
| Rear Lift Method | Cast Blocks |
| Required Tools | Torsion Bar Unloading Tool |
| Requires Metal Cutting | No |
| Requires Welding | No |
| SDR Required Flag | N |
| Wheel Size | 17 x 9 |
| Wheel Size 2 | 18 x 9 |
| Wheel Size 3 | 20 x 9 |
