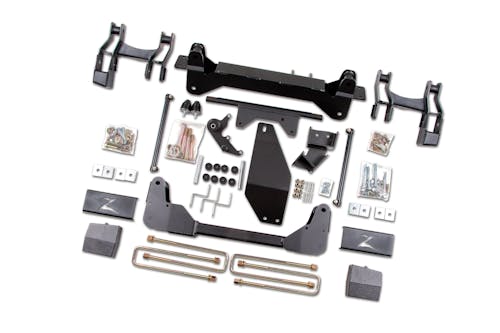

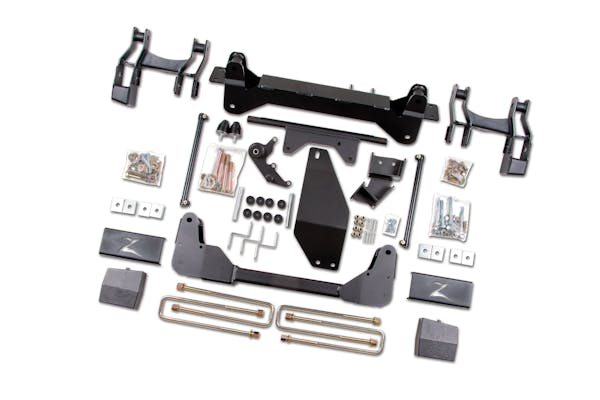

Turn heads and drop jaws when you lift your Chevy with this 6" Lift Kit. This kit has everything you need to clear 35" tires and all the pieces and parts for optimal steering and drivetrain geometry. Fits 4WD 1988 - 1998 Chevy/GM K1500 truck & SUVs.
- Heavy-duty differential skid slate improves offroad protection
- High-strength, 1/4" steel construction crossmembers correct lower control arm geometry
- Lift system does not change the front track width of the vehicle
- Multi-point differential relocation brackets secure front differential for improved CV operating angles
- Relocation bracket allows for reinstallation of the factory spare tire
- Upper control arm relocation brackets correct front suspension geometry.
Information:
Auto-trac/Front Driveshaft? Models equipped with an auto-trac transfer case may require a new front driveshaft. Auto-trac transfer cases can be identified by a badge on the rear case that reads “NP246”. In addition, the dash mounted display will show the Auto 4WD symbol. Cases with “NP243” are not auto-trac. Exhaust: Requires exhaust modification to clear the front driveshaft. See installation instructions for more information. Fitment: Not recommended for Tahoe/Yukon 4 door models. Does NOT fit 8 lug models.Application Summary:
| Year | Make/Model |
|---|---|
| 1988-1998 | Chevrolet K1500 |
| 1992-1998 | Chevrolet K1500 Suburban |
| 1988-1998 | Chevrolet K2500 |
| 1995-1998 | Chevrolet Tahoe |
| 1988-1998 | GMC K1500 |
| 1988-1998 | GMC K2500 |
| 1992-1997 | GMC Yukon |
This item is a package with the following components:
NEW!
Zone Offroad Products ZONC2640 Zone 6in Fr..
Brand: Zone Offroad Products
Part Number: ZONC2640
88-98 K1500 6in Front Box 1 of 3..
$340.95
NEW!
Zone Offroad Products ZONC2641 Zone 6in Fr..
Brand: Zone Offroad Products
Part Number: ZONC2641
88-98 K1500 6in Front Box 2 of 3..
$290.95
NEW!
Zone Offroad Products ZONC2642 Zone 6in Fr..
Brand: Zone Offroad Products
Part Number: ZONC2642
88-98 K1500 6in Front Box 3 of 3..
$313.95
NEW!
Zone Offroad Products ZONC2649 Zone 5in Re..
Brand: Zone Offroad Products
Part Number: ZONC2649
88-98 K1500 5in Rear Box Kit..
$77.95
| Attributes | |
| Accommodates Factory Wheels | Yes |
| Adjustable | No |
| Alternate Part Number | ZONC14 |
| Back Spacing | Stock |
| Back Spacing 2 | 6" |
| Back Spacing 3 | 6" |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Country of Origin (Primary) | US |
| Emission Code | Legal US |
| Finish | Powdercoat |
| Front Lift Height | 6" |
| Front Lift Method | Torsion Bar Drop |
| GTIN | 00810156360114 |
| Hazardous Material Code | N |
| Installation Difficulty | 4 out of 5 |
| Installation Time | 8 hrs |
| Life Cycle Status Code | Available to Order |
| Lift Type | Lift Kit |
| Material | 1/4" Steel |
| Max Tire Size | 35 x 12.5 |
| Max Tire Size 2 | 35 x 12.5 |
| Max Tire Size 3 | 35 x 12.5 |
| NAFTA Preference Criterion Code | B |
| Rear Lift Height | 5" |
| Rear Lift Method | Cast Blocks |
| Required Tools | Torsion Bar Unloading Tool |
| Requires Metal Cutting | No |
| Requires Welding | No |
| SDR Required Flag | N |
| Wheel Size | Stock |
| Wheel Size 2 | 17 x 9 |
| Wheel Size 3 | 20 x 9 |
NEW! Zone Offroad Products ZONC14 Zone 6 Torsion Bar Drop Lift Kit
Product Information
- Brand: Zone Offroad Products
- Product Number: ZONC14
$1,023.80
