SX10SR Winch; 10000 lbs.; 12 VDC; 3/8 in. X 80 ft. Synthetic Rope; Handheld Remote Control; 5.5 HP; Automatic Brake; 3-Stage Planetary; Aluminum Hawse Fairlead;
The SX 10000SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX 10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
The SX 10000SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8 in. diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX 10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
- Rated Line Pull Of 10000 Lbs
- IP68-Rated Waterproof And Dustproof Winch
- Durable Metallic Graphite Powder Coat Finish
- Mechanical Warranty Limited Lifetime
- Electrical Warranty Limited 7 Year
- 5.5 HP Sealed Motor
- Relocatable Die-Cast Aluminum Control Box
- Pull-And Turn Clutch Handle
- 3-Stage Planetary Gearing w/218:1 Ratio
- Heavy Duty Clevis Winch Hook
- 100% Full Load Holding Automatic Mechanical Brake
| Attributes | |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Can Ship By Ground Delivery | Yes |
| Country of Origin (Primary) | CN |

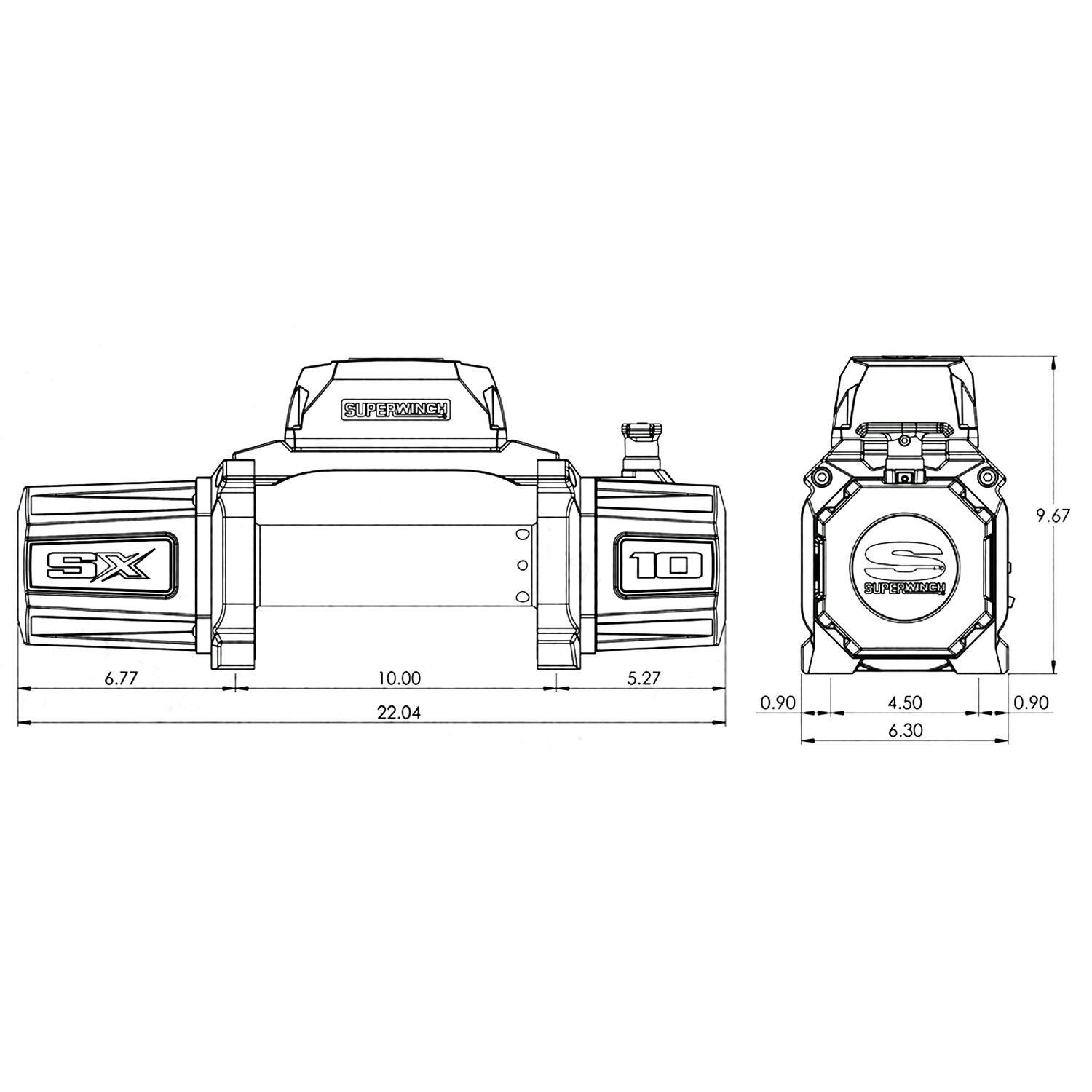

| Dimensions | 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H) |
| EN Compliant | No |
| Finish/Color | Graphite |
| Freight Class | 65 |
| GTIN | 00022705003889 |
| Harmonized Tariff Code (Schedule B) | 8435310100 |
| Hazardous Material Code | N |
| Hook | Heavy-Duty, Clevis Pinned Latched |
| Life Cycle Status Code | Available to Order |
| Marketing Status | Current |
| Mounting Bolt Pattern | 10in x 4.5in (254mm x 114.3mm) |
| NAFTA Preference Criterion Code | B |
| Rated Single Line Pull (Lbs) | 10000 |
| Rated Single Line Pull (lbs.) | 10000 |
| Rope Material | Synthetic |
| SDR Required Flag | N |
| Superwinch WEB Title | SX10SR Winch 12V 10000 lbs with Synthetic Rope & Wired Remote |
| Type | Universal |
| Voltage | 12 DC, 12V DC |
| Warranty | Limited Lifetime Mechanical/7 Year Limited Electrical |
Superwinch 1710201 SX 1000SR Winch
Product Information
- Brand: Superwinch
- Product Number: 1710201
