Suspension Leveling Lift Kit; 1.5 in. Lift;

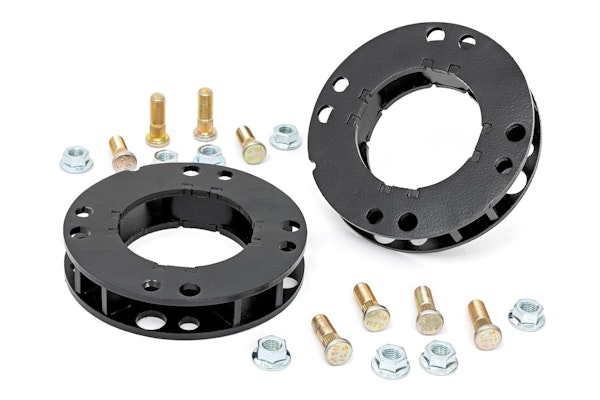

you need durability too. Crafted from heavy-duty steel and coated in black powder, our leveling kit is ready to handle anything the road throws at you. Don't settle for stock ride height when you can experience all the benefits of increased ground clearance and a leveled stance while maintaining factory ride quality. With easy installation and high-quality materials, our kit is designed to take your Tacoma to the next level.
- Provides approximately 1.5" of lift
- Easy bolt-on installation
- Increased ground clearance
- Maintains factory ride quality
- Levels the front with the rear of the vehicle
- Retains factory alignment specs.
Information:
Requires minimal trimming to upper strut studs for installation. Does NOT fit Trailhunter or TRD Pro models. Does NOT fit models equipped with Adaptive Variable Suspension (AVS).
Application Summary:
| Year |
Make/Model |
| 2024 |
Toyota Tacoma |
| Attributes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Category |
Leveling Kits |
| Country of Origin (Primary) |
US |
| Front Components |
Strut Extensions Hardware |
| GTIN |
00840269948121 |
| Harmonized Tariff Code (Schedule B) |
8708809900 |
| Hazardous Material Code |
N |
| Install Time |
2-4 hours |
| Life Cycle Status Code |
Available to Order |
| Lift/Drop Height |
1.5 in. |
| NAFTA Preference Criterion Code |
B |
| SDR Required Flag |
N |
| Shipping Options |
No Restrictions |
| Ships in Multiple Boxes |
N |
| Tire Info |
285/70R17:Factory 17:6x5.5:-:-;285/70R17:17x8:6x5.5:+35:Minor Trimming;285/70R17:17x8.5:6x5.5:+0:Minor Trimming;275/70R17:17x8.5:6x5.5:+0:-;285/70R17:17x8.5:6x5.5:+1:Minor Trimming;275/70R17:17x8.5:6x5.5:+1:-;285/70R17:17x8.5:6x5.5:+12:Minor Trimming;285/70R17:17x8.5:6x5.5:+25:Minor Trimming;285/70R17:17x8.5:6x5.5:+50:Minor Trimming;285/70R17:17x9:6x5.5:+0:Minor Trimming;275/70R17:17x9:6x5.5:+0:-;285/70R17:17x9:6x5.5:+1:Minor Trimming;275/70R17:17x9:6x5.5:+1:-;285/70R17:17x9:6x5.5:+50:Minor Trimming;285/65R18:18x8.5:6x5.5:+0:Minor Trimming;275/65R18:18x8.5:6x5.5:+0:Minor Trimming;285/65R18:18x8.5:6x5.5:+1:Minor Trimming;275/65R18:18x8.5:6x5.5:+1:Minor Trimming;285/65R18:18x9:6x5.5:+0:Minor Trimming;275/65R18:18x9:6x5.5:+0:Minor Trimming;285/65R18:18x9:6x5.5:+1:Minor Trimming;275/65R18:18x9:6x5.5:+1:Minor Trimming;285/55R20:20x9:6x5.5:+0:Minor Trimming;275/55R20:20x9:6x5.5:+0:Minor Trimming;265/60R20:20x9:6x5.5:+0:Minor Trimming;285/55R20:20x9:6x5.5:+1:Minor Trimming;275/55R20:20x9:6x5.5:+1:Minor Trimming;265/60R20:20x9:6x5.5:+1:Minor Trimming;285/55R20:20x10:6x5.5:-19:-;275/55R20:20x10:6x5.5:-19:-;265/60R20:20x10:6x5.5:-19:-;285/55R20:20x10:6x5.5:-18:-;275/55R20:20x10:6x5.5:-18:-;265/60R20:20x10:6x5.5:-18:-;265/60R20:20x10:6x5.5:+0:Trimming Required;265/60R20:20x10:6x5.5:+1:Trimming Required;285/50R22:22x10:6x5.5:-19:-;285/45R22:22x10:6x5.5:-19:-;285/50R22:22x10:6x5.5:-18:-;285/45R22:22x10:6x5.5:-18:- |
