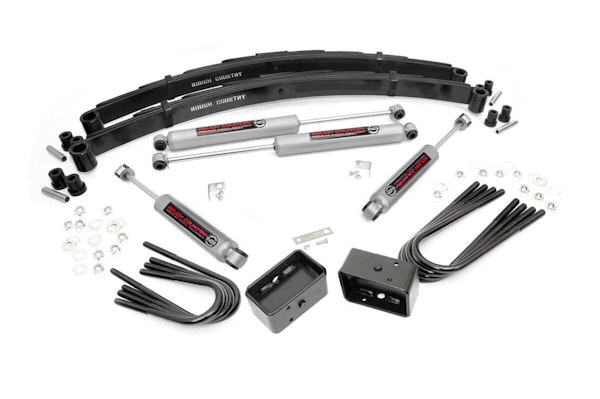

Suspension Lift Kit; 4 in. Lift;
Give your truck an impressive upgrade, front to back with Rough Country's 4" GM Suspension Lift Kit! This easy-to-install lift kit raises the front of your vehicle to be equal height with the rear for a leveled, better-than-stock look that gives an improved ride height and more aggressive appearance. This kit features a set of front lifted leaf springs allowing you gain additional ride height without sacrificing ride quality or performance. A set of rear blocks and brake line brackets are provided to keep everything at optimum angles for a factory-like ride, even after lifting. A set of Rough Country's premium N3 shocks are also included. These fine tuned 10-stage variable high-pressure Nitrogen charged shocks offer a fantastic blend of off-road action and smooth highway ride quality. With a durable 18mm spring-loaded piston rod and faster-cooling 54mm shock body. Get the wheels you want! Rough Country's 4" GM Suspension Lift Kit comes with everything you need to fit up to a 35" tire with proper wheel backspacing. Best of all, Rough Country's 4" GM Suspension Lift Kit is backed by our Lifetime Replacement Warranty.
- Increased ground clearance
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Information:
If vehicle is equipped with a front sway-bar, drop brackets are recommended. (#1019) Optional steering arm only fits models with 3-bolt open knuckle steering.
Application Summary:
| Year |
Make/Model |
| 1969-1972 |
Chevrolet Blazer |
| 1969 |
Chevrolet K10 Pickup |
| 1969 |
Chevrolet K10 Suburban |
| 1969 |
Chevrolet K20 Pickup |
| 1970-1972 |
GMC Jimmy |
| 1970-1972 |
GMC K15/K1500 Pickup |
| 1970-1972 |
GMC K15/K1500 Suburban |
| 1970-1972 |
GMC K25/K2500 Pickup |
| Attributes |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Category |
Susp Lift Kits 4wd |
| Country of Origin (Primary) |
ID |
| Front Components |
Lifted leaf springs Brake line relocation brackets U-bolts Hardware, Lifted leaf springs Brake line relocation brackets U-bolts Hardware |
| Front Kit Componenets |
Lifted leaf springs, Brake line relocation brackets, U-bolts, Hardware |
| Front Kit Components |
Lifted leaf springs, Brake line relocation brackets, U-bolts, Hardware |
| GTIN |
00843030150655 |
| Harmonized Tariff Code (Schedule B) |
8708809900 |
| Hazardous Material Code |
N |
| Install Time |
6 - 8 hours, 6 - 8 hours |
| Life Cycle Status Code |
Available to Order |
| Lift/Drop Height |
4 in. |
| NAFTA Preference Criterion Code |
D |
| Rear Components |
4 in. lift blocks U-bolts Hardware, 4 inch lift blocks U-bolts Hardware |
| Rear Kit Components |
4in Lift Blocks, U-Bolts, Hardware |
| SDR Required Flag |
N |
| Shipping Options |
No Restrictions |
| Ships in Multiple Boxes |
Y |
| Tire & Wheel Size Combinations |
315/55 R20 - 20x9, Backspacing/Offset: 4.5-5in/-12 to 0mm, 315/55 R20 - 20x9, Backspacing/Offset: 4.5-5in/-12 to 0mm |
| Tire Info |
35x12.50R15:15x8:6x5.5:+0:-;35x12.50R15:15x8:6x5.5:+1:-;315/75R16:16x8:6x5.5:-6:-;315/75R16:16x8:6x5.5:+0:-;315/75R16:16x8:6x5.5:+1:-;305/70R17:17x8.5:6x5.5:-12:-;285/75R17:17x8.5:6x5.5:-12:-;315/70R17:17x8.5:6x5.5:+0:-;305/70R17:17x8.5:6x5.5:+0:-;315/70R17:17x8.5:6x5.5:+1:-;305/70R17:17x8.5:6x5.5:+1:-;305/70R17:17x9:6x5.5:-19:-;285/75R17:17x9:6x5.5:-19:-;305/70R17:17x9:6x5.5:-18:-;285/75R17:17x9:6x5.5:-18:-;35x12.50R17:17x9:6x5.5:-12:-;315/70R17:17x9:6x5.5:-12:-;305/70R17:17x9:6x5.5:-12:-;35x12.50R17:17x9:6x5.5:+0:-;315/70R17:17x9:6x5.5:+0:-;305/70R17:17x9:6x5.5:+0:-;35x12.50R17:17x9:6x5.5:+1:-;315/70R17:17x9:6x5.5:+1:-;305/70R17:17x9:6x5.5:+1:-;295/70R18:18x8:6x5.5:+0:-;295/70R18:18x8:6x5.5:+1:-;295/70R18:18x8.5:6x5.5:+0:-;285/75R18:18x8.5:6x5.5:+0:-;295/70R18:18x8.5:6x5.5:+1:-;285/75R18:18x8.5:6x5.5:+1:-;35x12.50R18:18x9:6x5.5:-12:-;295/70R18:18x9:6x5.5:-12:-;35x12.50R18:18x9:6x5.5:+0:-;295/70R18:18x9:6x5.5:+0:-;35x12.50R18:18x9:6x5.5:+1:-;295/70R18:18x9:6x5.5:+1:-;295/70R18:18x10:6x5.5:-25:-;295/70R18:18x10:6x5.5:-19:-;295/70R18:18x10:6x5.5:-18:-;35x12.50R20:20x9:6x5.5:-12:-;35x11.50R20:20x9:6x5.5:-12:-;295/60R20:20x9:6x5.5:-12:-;35x12.50R20:20x9:6x5.5:+0:-;35x11.50R20:20x9:6x5.5:+0:-;295/60R20:20x9:6x5.5:+0:-;35x12.50R20:20x9:6x5.5:+1:-;35x11.50R20:20x9:6x5.5:+1:-;295/60R20:20x9:6x5.5:+1:-;35x12.50R20:20x10:6x5.5:-25:Minor Trimming;295/60R20:20x10:6x5.5:-25:Minor Trimming;35x12.50R20:20x10:6x5.5:-19:Minor Trimming;295/60R20:20x10:6x5.5:-19:Minor Trimming;35x12.50R20:20x10:6x5.5:-18:Minor Trimming;295/60R20:20x10:6x5.5:-18:Minor Trimming;35x12.50R20:20x12:6x5.5:-44:Trimming Required;35x12.50R22:22x10:6x5.5:-25:Minor Trimming;285/55R22:22x10:6x5.5:-25:-;35x12.50R22:22x10:6x5.5:-19:Minor Trimming;285/55R22:22x10:6x5.5:-19:-;35x12.50R22:22x10:6x5.5:-18:Minor Trimming;285/55R22:22x10:6x5.5:-18:-;35x12.50R22:22x12:6x5.5:-44:Trimming Required |
| Tire, Wheel, and Offset Info |
35x12.50R15:15x8:6x5.5:+0:-; 315 75R16:16x8:6x5.5:+0:-; 315 70R17:17x8.5:6x5.5:+0:-; 35x12.50R17:17x9:6x5.5:-12:-; 315 70R17:17x9:6x5.5:-12:-; 315 70R17:17x9:6x5.5:-6:-; 35x12.50R17:17x9:6x5.5:+0:-; 315 70R17:17x9:6x5.5:+0:-; 35x12.50R17:17x9:6x5.5:+1:-; 295 70R18:18x8.5:6x5.5:+0:-; 35x12.50R18:18x9:6x5.5:-12:-; 295 70R18:18x9:6x5.5:-12:-; 295 70R18:18x9:6x5.5:-6:-; 35x12.50R18:18x9:6x5.5:+0:-; 295 70R18:18x9:6x5.5:+0:-; 35x12.50R18:18x9:6x5.5:+1:-; 35x12.50R20:20x9:6x5.5:-12:-; 35x11.50R20:20x9:6x5.5:-12:-; 295 60R20:20x9:6x5.5:-12:-; 35x11.50R20:20x9:6x5.5:-6:-; 35x12.50R20:20x9:6x5.5:+0:-; 35x11.50R20:20x9:6x5.5:+0:-; 295 60R20:20x9:6x5.5:+0:-; 35x12.50R20:20x9:6x5.5:+1:-; 295 60R20:20x9:6x5.5:+1:-; 35x12.50R20:20x10:6x5.5:-25:-; 295 60R20:20x10:6x5.5:-25:-; 35x12.50R20:20x10:6x5.5:-24:-; 295 60R20:20x10:6x5.5:-24:-; 35x12.50R20:20x10:6x5.5:-19:-; 295 60R20:20x10:6x5.5:-19:-; 35x12.50R20:20x10:6x5.5:-18:-; 295 60R20:20x10:6x5.5:-18:-; 35x12.50R22:22x10:6x5.5:-25:-; 35x12.50R22:22x10:6x5.5:-19:- |
