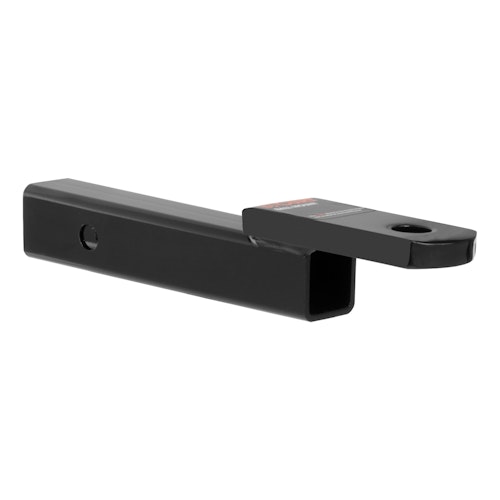

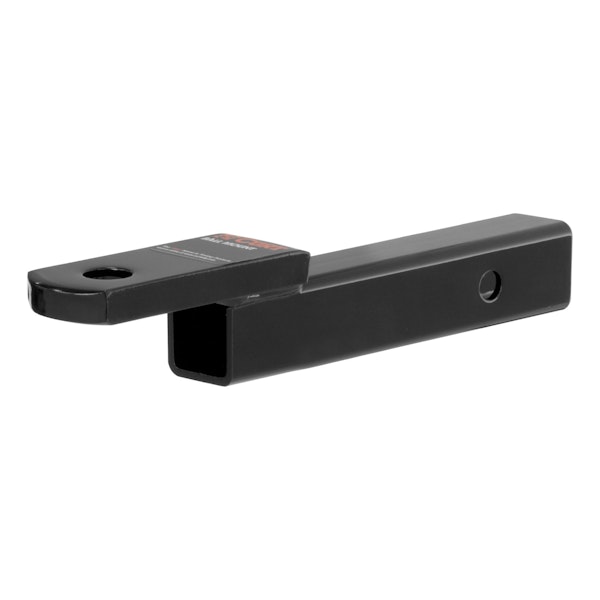

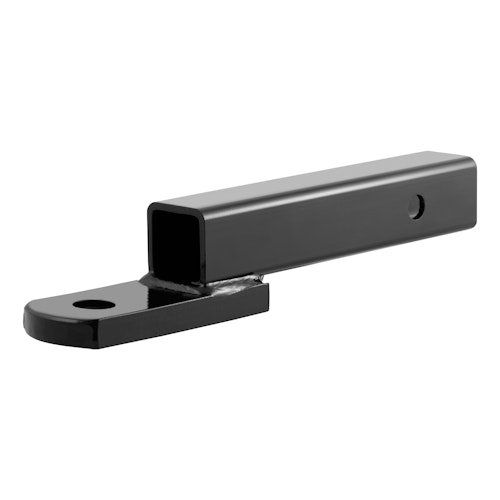

CURT 45829 Class 3 Trailer Hitch Ball Mount, Imported, Fits 2-Inch Receiver, 7,500 lbs, 1-Inch Hole, 2-In Drop, 3/4-Inch Rise
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 10-1/4", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.
CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount has a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It features a length of 10-1/4", a drop of 2" and a possible rise of 3/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.
- Fits trailer hitches with a 2" x 2" receiver tube opening
- Equipped with a 1" hole to accept a trailer ball shank
- 3/4" rise or 2" drop for precise trailer leveling
- Hollow shank weighs less and can be used with an anti-rattle kit
- CNC-formed, robotically welded and mechanically descaled for a perfect fit
- Protected by a durable powder coat finish
- Limited lifetime warranty (one-year finish, one-year parts)
Information:
Limited lifetime warranty (one-year finish, one-year parts)Attributes | |
California Proposition 65 | Yes |
Container Volume Cubic Feet - XA | 0.00000 |
Container Volume Cubic Meter - XA | 0.00000 |
Country of Origin (Primary) | CN |
Drop | 2.000 in. |
Drop (in.) | 2 |
Finish - XA | Blank |
GTIN | 00612314458295 |
Gross Trailer Weight (GTW) | 7,500 LB |
Harmonized Tariff Code (Schedule B) | 8708998180 |
Hazardous Material Code | N |
Item Class - XA | OBS |
Item Height - XA | 0.000 |
Item Length - XA | 0.000 |
Item Width - XA | 0.000 |
Life Cycle Status Code | Available to Order |
Master Case Height Inches - XA | 0.000 |
Master Case Length Inches - XA | 0.000 |
Master Case Volume Cubic Feet - XA | 0.00000 |
Master Case Weight Lbs - XA | 0.000 |
Master Case Width Inches - XA | 0.000 |
Material - XA | Carbon Steel |
Mount Type Description - XA | Blank |
NAFTA Preference Criterion Code | B |
Overall Length | 10.250 in. |
Overall Length (in.) | 14.50 |
Pallet Qty - XA | 0.000 |
Pallet Total Height Inches - XA | 0.000, 0.000 |
Pallet Total Weight Per - XA | 0.000, 0.000 |
Parcel Allowed - XA | Yes, Yes |
Product Weight - XA | 0.000, 0.000 |
Rate Class - XA | 70.0, 60.0 |
Receiver Tube Size | 2 IN, 2 IN |
Retail Height - XA | 2.500, 2.500 |
Retail Length - XA | 14.500, 14.500 |
Retail Width - XA | 2.750, 2.750 |
Rise | 0.750 in. |
Rise (in.) | 0.75 |
SDR Required Flag | N |
Sales Family Code - XA | ACCES, ACCES |
Sales Family Description - XA | ACCESSORIES, ACCESSORIES |
Sales Group Description - XA | BALL MOUNT, BALL MOUNT |
Shipping Weight - XA | 8.000, 8.000 |
Side Application Type Description - XA | Blank, Blank |
Style | Fixed |
Tariff 301 - XA | Yes, Yes |
Truckload Volume Cubic Feet - XA | 0.00000, 0.00000 |
Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
CURT 45829 Class 3 Ball Mount, Imported (2" Shank, 7,500 lbs., 2" Drop, 10-1/4" Long)
Product Information
- Brand: CURT
- Product Number: 45829
