CURT 45360 Aluminum Trailer Hitch Ball Mount; Fits 2-Inch Receiver; 8;000 lbs; 1-Inch Hole; 2-In Drop; 1-In Rise

---

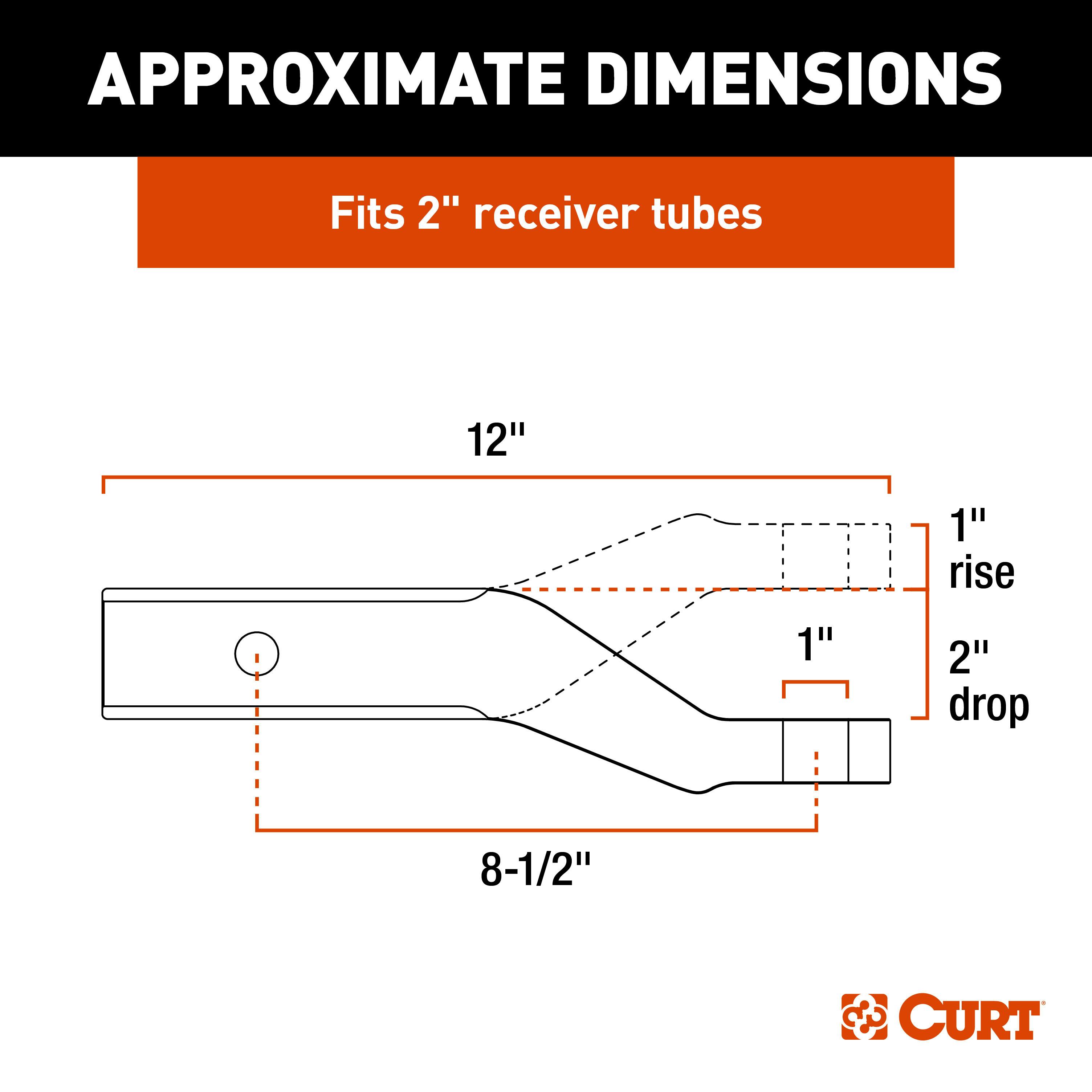

This CURT class 3 aluminum trailer hitch ball mount features a 2-inch x 2-inch shank and an 8K capacity for towing larger trailers, including utility trailers, boat trailers, campers and more. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). This particular aluminum ball mount can be used in the drop position to provide a drop of 2 inches, a gross trailer weight capacity of 8,000 pounds and a tongue weight capacity of 800 pounds. It can also be flipped to provide a rise of 1 inch. It features a length of 8-1/2 inches hole-to-hole, and it has a 1-inch hole to accept a tow ball. CURT aluminum hitch ball mounts are constructed from solid aluminum. They are strong but lightweight compared to steel alternatives. Aluminum is also naturally resistant to rust and corrosion, promoting long-lasting dependability for your towing system. NOTE: Trailer ball torque should not exceed 250 lb-ft. (sold separately).

• Fits Trailer Hitches w/2in x 2in Receiver Tube Opening
• Constructed From Solid Aluminum To Be Lightweight
• Equipped w/A 1in Hole To Accept A Trailer Ball Shank
• 1in Rise Or 2in Drop For Precise Trailer Leveling
• Tested For Safety In Accordance w/SAE J684
• Limited Lifetime Warranty

---

Information:

Aluminum Ball Mount (2 Shank, 8,000 lbs, 2 Drop, 8-1/2 Long); Fits trailer hitches with a 2 x 2 receiver tube opening; Constructed from solid aluminum to be lightweight and naturally rust-resistant; Equipped with a 1 hole to accept a trailer ball shank; 1 rise or 2 drop for precise trailer leveling; Tested for safety in accordance with SAE J684; Limited lifetime warranty

---

Application Summary:

Year	Make/Model
CURT	45360 Aluminum Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 8,000 lbs, 1-Inch Hole, 2-In Drop, 1-In Rise
