CURT 45134 Fusion Trailer Hitch Mount with 2-Inch Ball/Pin; Fits 2-In Receiver; 7;500 lbs; 2in. Drop

---

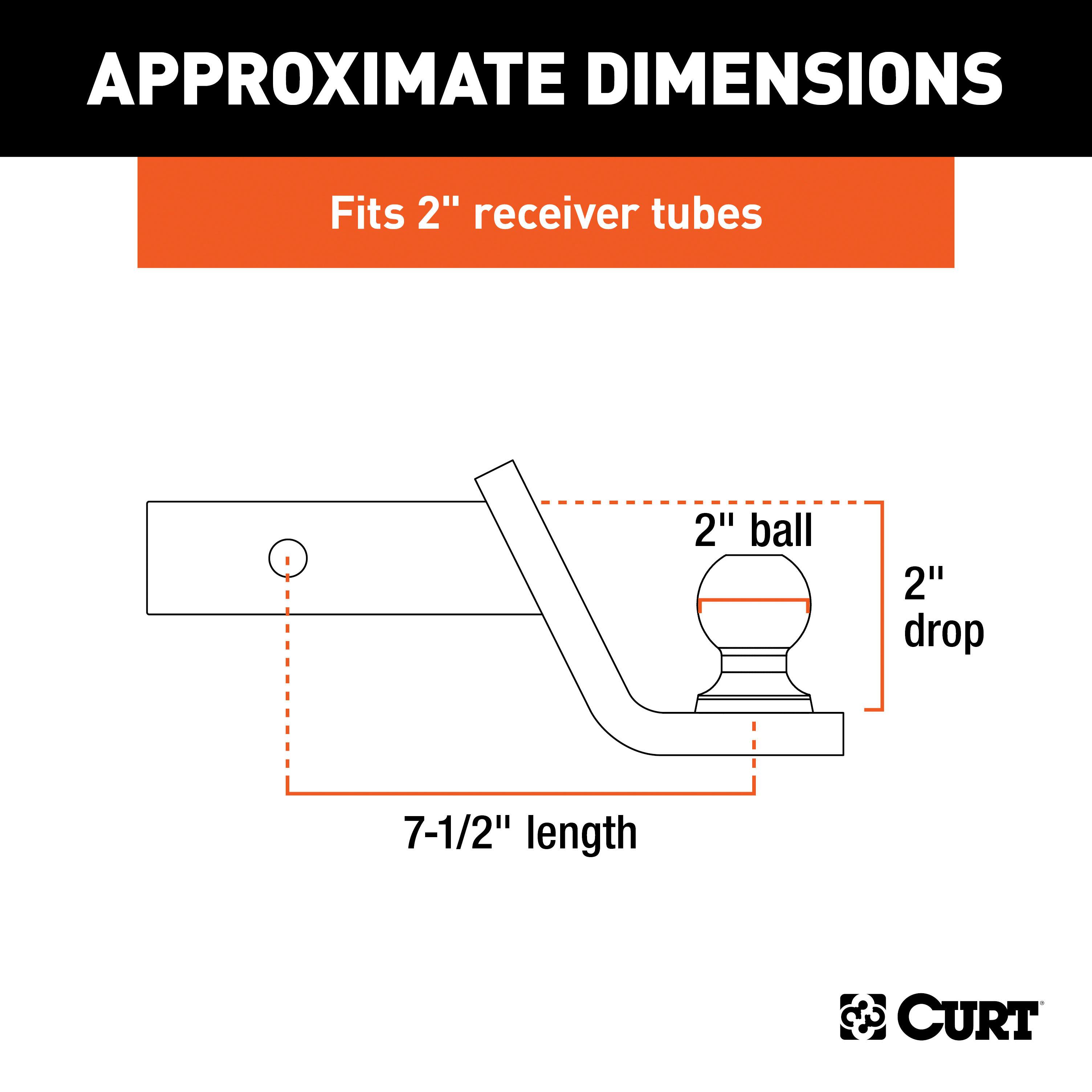

Arm yourself with confidence with a CURT Fusion ball mount. Much like our loaded ball mounts, CURT Fusion mounts come with a trailer ball pre-attached to the mounting platform to provide a ready-to-tow solution right out the package. Unlike a loaded ball mount, however, a Fusion ball mount features a trailer ball that is permanently fixed to the shank structure, making it stronger than a traditional non-welded ball mount. With their fixed tow ball, Fusion ball mounts are also very similar to our Euro Mount ball mounts. Besides increased strength, one advantage of a permanently attached trailer ball is that it can never be loosened or stolen from your vehicle. CURT Fusion ball mounts come with 2 in. x 2 in. shanks and include a pin and clip with each unit. This particular Fusion mount features a gross trailer weight capacity of 7,500 lbs. and a tongue weight rating of 750 lbs. It measures 7-1/2 in. long, has 2 in. of drop and comes with a 2 in. diameter trailer ball. CURT Fusion ball mounts are great for towing most standard size trailers, including utility trailers, livestock trailers, boat trailers and campers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Each unit is robotically welded to ensure accurate, consistent cuts and clean, strong weld lines. Once welded, these ball mounts undergo a cleaning process that creates a flawless surface for the application of our highly durable gloss black powder coat finish for long-lasting resistance to corrosion and chipping.

• Fits Trailer Hitches w/A 2 In. X 2 In. Receiver Tube Opening
• Welded Trailer Ball Accepts A 2 In. Coupler
• Permanently Attached Trailer Ball Cannot Be Loosened Or Stolen
• 2 In. Drop For Precise Trailer Leveling
• Hollow Shank Weighs Less And Can Be Used w/An Anti-Rattle Kit
• Protected By A Durable Powder Coat Finish
• Trailer Ball Features A Polished Chrome-Plated Finish

---

Information:

Fusion Ball Mount with 2 Ball (2 Shank, 7,500 lbs., 2 Drop); Fits trailer hitches with a 2 x 2 receiver tube opening; Welded trailer ball accepts a 2 coupler; Permanently attached trailer ball cannot be loosened or stolen; 2 drop for precise trailer leveling; Hollow shank weighs less and can be used with an anti-rattle kit; Protected by a durable powder coat finish; Trailer ball features a polished chrome-plated finish; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	45134 Fusion Trailer Hitch Mount with 2-Inch Ball & Pin, Fits 2-In Receiver, 7,500 lbs, 2 Drop
