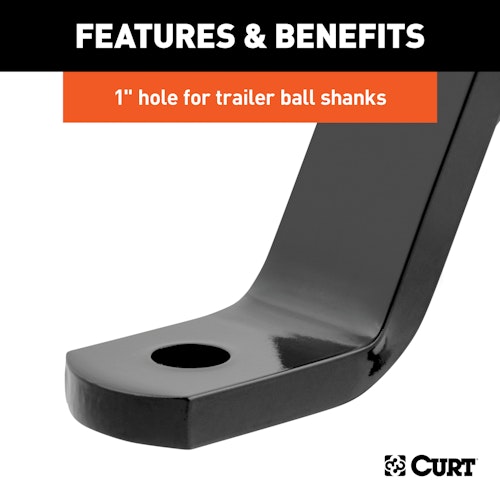

CURT 45112 Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 10-Inch Drop

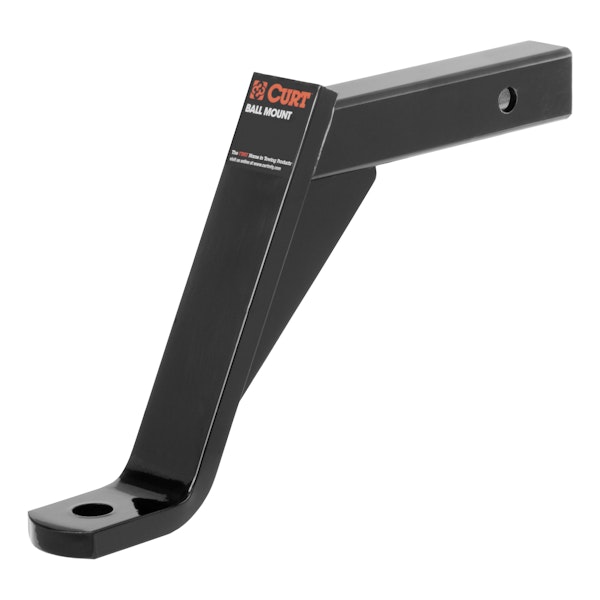

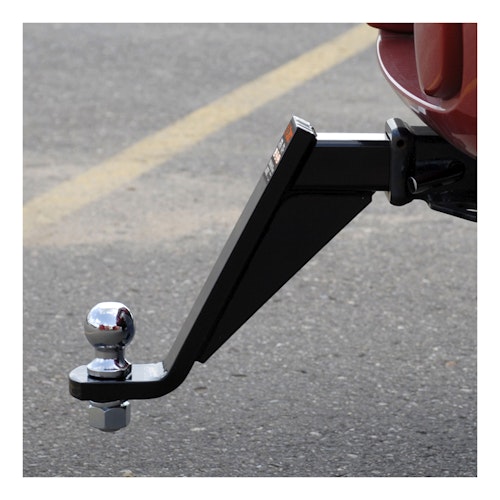

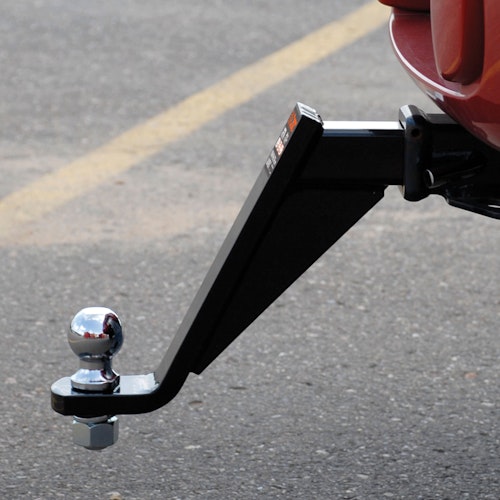

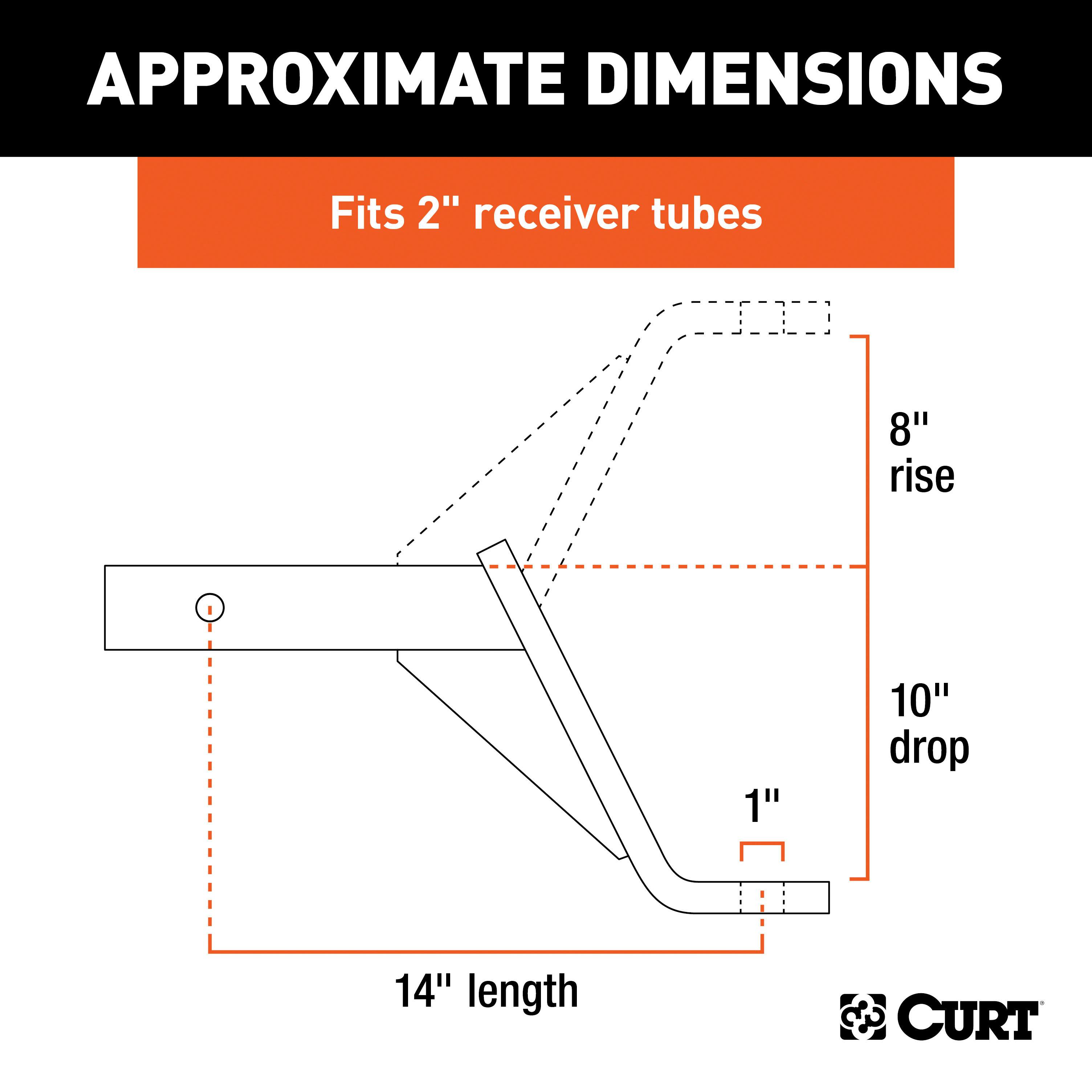

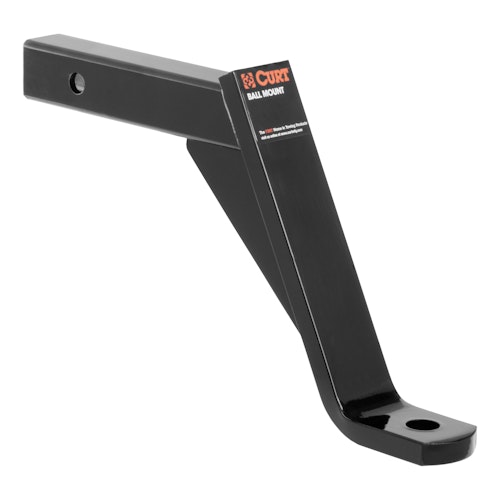

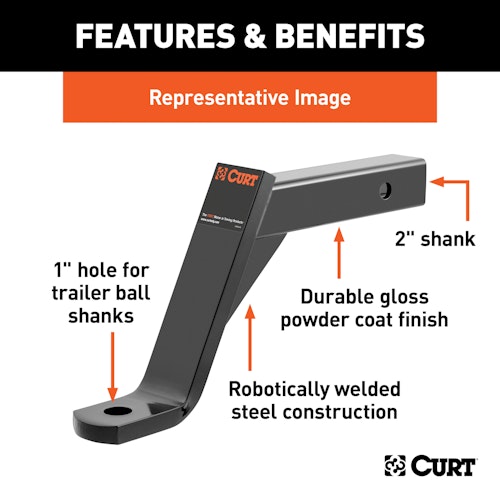

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 10", a gross trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 500 lbs. It can also be flipped to provide a rise of 8", a gross trailer weight capacity of 3,500 lbs. and a tongue weight capacity of 350 lbs. It features a length of 14". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

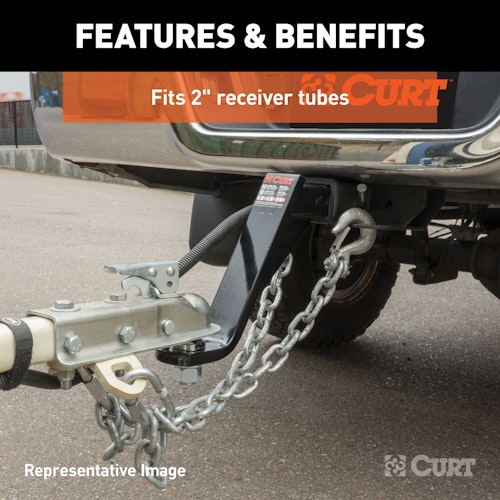

- Fits trailer hitches with a 2" x 2" receiver tube opening
Information:
Fits trailer hitches with a 2" x 2" receiver tube opening
Application Summary:
Year |
Make/Model |
CURT |
45112 Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 10-Inch Drop |
Attributes |
ASIN |
B0007M308K |
Box Height in Inches - XA |
24, 24 |
Box Length in Inches - XA |
8, 8 |
Box Width in Inches - XA |
2, 2 |
California Proposition 65 |
Yes |
Container Volume Cubic Feet - XA |
0.00000 |
Container Volume Cubic Meter - XA |
0.00000 |
Country of Origin (Primary) |
US |
Drop |
10 IN, 10.000 in. |
Drop (in.) |
10.000 in. |
Finish |
Gloss Black Powder Coat |
Finish - XA |
Gloss Black Powder Coat, GLOSS BLACK POWDER COAT |
GTIN |
00612314412006 |
GTW/TW Ball Drop |
5,000 LB / 500 LB, 5,000 LB / 500 LB |
GTW/TW Ball Rise |
3,500 LB / 350 LB, 3,500 LB / 350 LB |
Harmonized Tariff Code (Schedule B) |
8708998180 |
Hazardous Material Code |
N |
Item Class - XA |
OMF, OMF |
Item Height - XA |
0.000, 0.000 |
Item Length - XA |
0.000, 0.000 |
Item Width - XA |
0.000, 0.000 |
Life Cycle Status Code |
Available to Order |
Long Description |
10 In x 8 In x 10 1/4 In Ball Mount |
Master Case Height Inches - XA |
0.000 |
Master Case Length Inches - XA |
0.000 |
Master Case Volume Cubic Feet - XA |
0.00000 |
Master Case Weight Lbs - XA |
0.000 |
Master Case Width Inches - XA |
0.000 |
Material - XA |
Carbon Steel |
Mount Type Description - XA |
Blank |
NAFTA Preference Criterion Code |
B |
Overall Length |
10.250 in. |
Overall Length (in.) |
10.250 in. |
Pallet Qty - XA |
153.000 |
Pallet Total Height Inches - XA |
0.000, 0.000 |
Pallet Total Weight Per - XA |
0.000, 0.000 |
Parcel Allowed - XA |
Yes, Yes |
Product Weight - XA |
0.000, 0.000 |
Rate Class - XA |
70.0, 60.0 |
Receiver Tube Size |
2 IN, 2.000 in. |
Retail Height - XA |
2.500, 2.500 |
Retail Length - XA |
18.000, 18.000 |
Retail Width - XA |
11.000, 11.000 |
Rise |
8 IN, 8.000 in. |
Rise (in.) |
8.000 in. |
SDR Required Flag |
N |
Sales Family Code - XA |
ACCES, ACCES |
Sales Family Description - XA |
ACCESSORIES, ACCESSORIES |
Sales Group Description - XA |
BALL MOUNT, BALL MOUNT |
Shipping Weight - XA |
14.000, 14.000 |
Side Application Type Description - XA |
Blank, Blank |
Style |
Fixed |
Tariff 301 - XA |
No, No |
Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
