CURT 45090 Class 3 Trailer Hitch Ball Mount; Fits 2-Inch Receiver; 5;000 lbs; 1-Inch Hole; 8-Inch Drop

---

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2 in. x 2 in. shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).This particular class 3 ball mount can be used in the drop position to provide a drop of 8 in., a gross trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 500 lbs. It can also be flipped to provide a rise of 6 in., a gross trailer weight capacity of 3,500 lbs. and a tongue weight capacity of 350 lbs. It features a length of 11-1/2 in.. Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

• Fits Trailer Hitches w/A 2 In. X 2 In. Receiver Tube Opening
• Equipped w/A 1 In. Hole To Accept A Trailer Ball Shank

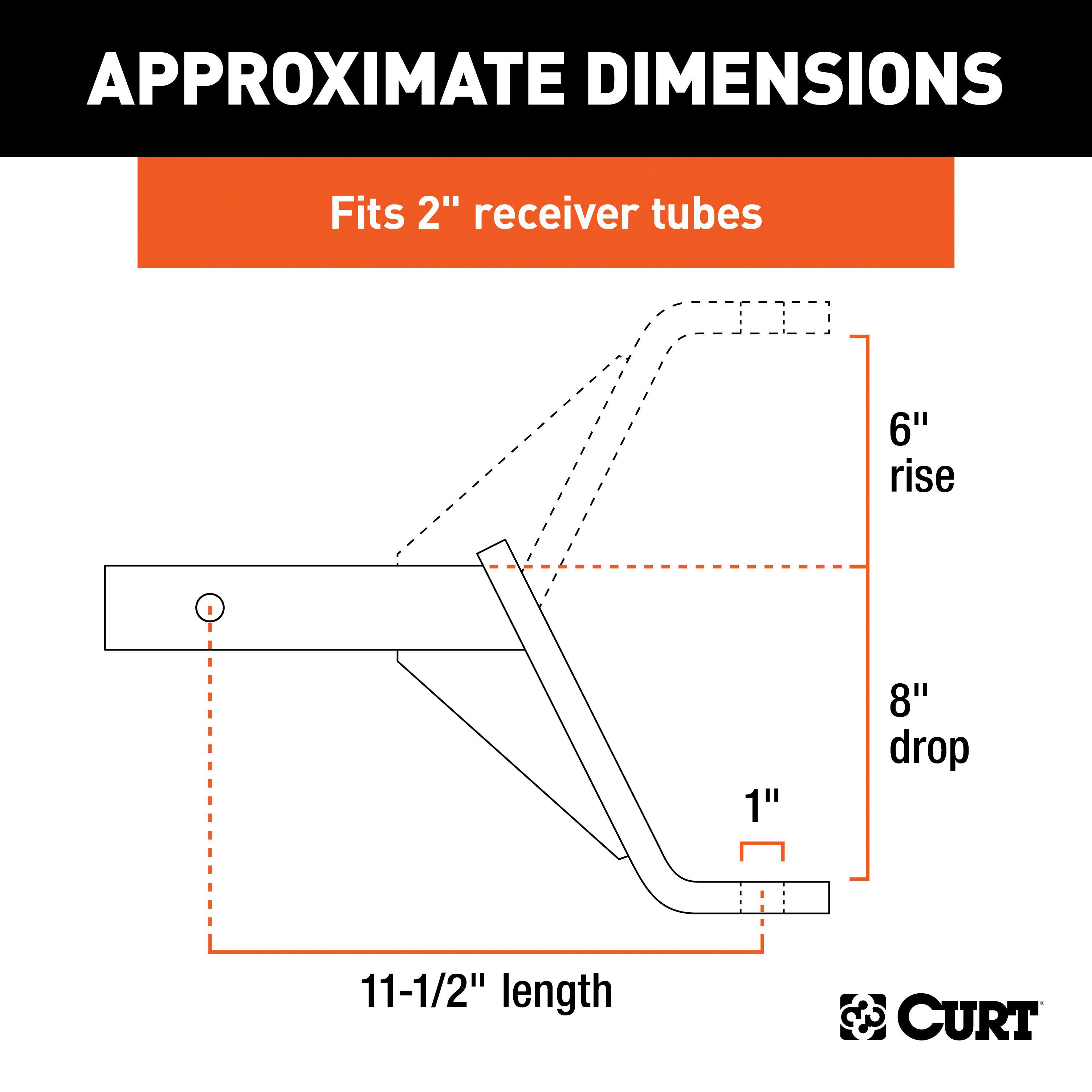

• 6 In. Rise Or 8 In. Drop For Precise Trailer Leveling
• Hollow Shank Weighs Less And Can Be Used w/An Anti-Rattle Kit
• CNC-Formed Robotically Welded And Mechanically Descaled
• Protected By A Durable Powder Coat Finish
• Made In USA

---

Information:

Class 3 Ball Mount (2 Shank, 5,000 lbs., 8 Drop, 11-1/2 Long); Fits trailer hitches with a 2 x 2 receiver tube opening; Equipped with a 1 hole to accept a trailer ball shank; 6 rise or 8 drop for precise trailer leveling; Hollow shank weighs less and can be used with an anti-rattle kit; CNC-formed, robotically welded and mechanically descaled for a perfect fit; Protected by a durable powder coat finish; Made in USA; Limited lifetime warranty (one-year finish, one-year parts)

---

Application Summary:

Year	Make/Model
CURT	45090 Class 3 Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5,000 lbs, 1-Inch Hole, 8-Inch Drop
