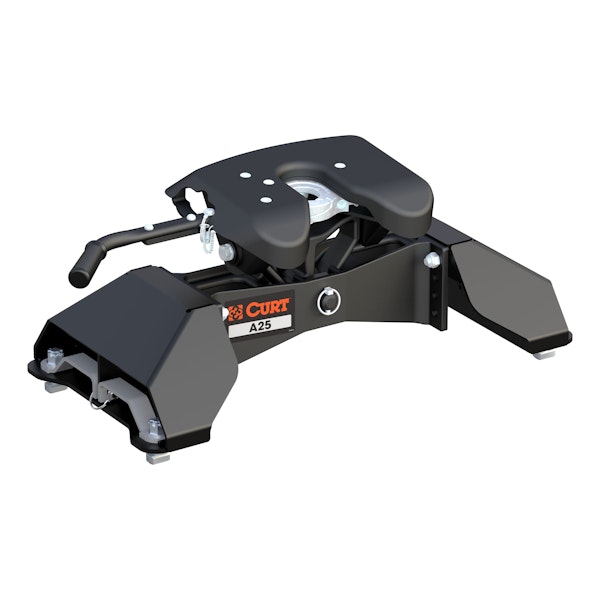

CURT 16036 A25 5th Wheel Hitch, 24,000 lbs, Select Ford F-250, F-350, F-450, 8-Foot Bed Puck System

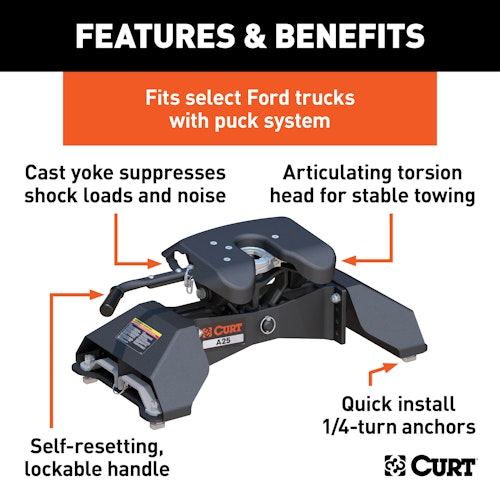

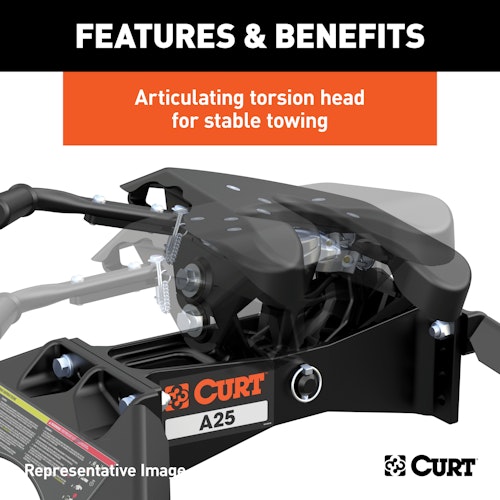

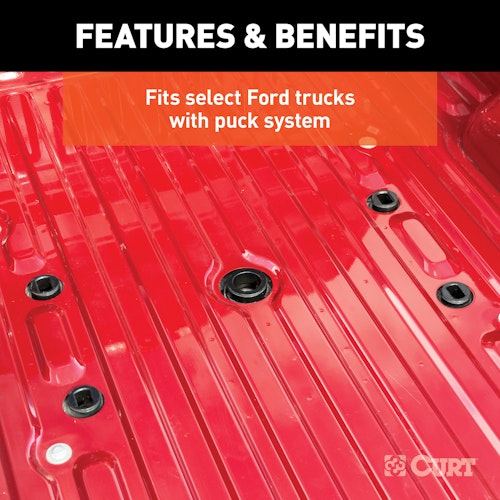

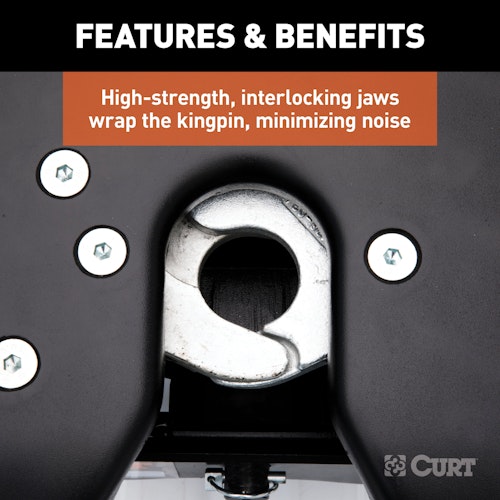

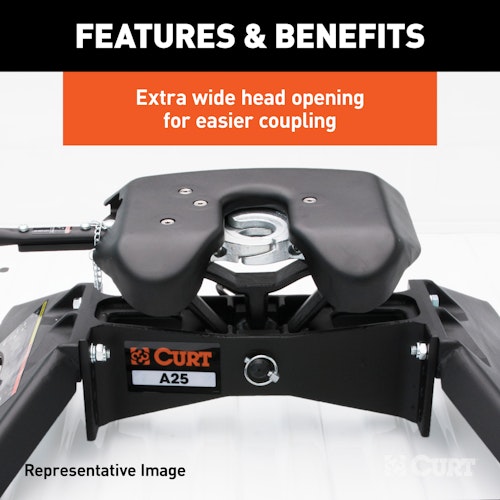

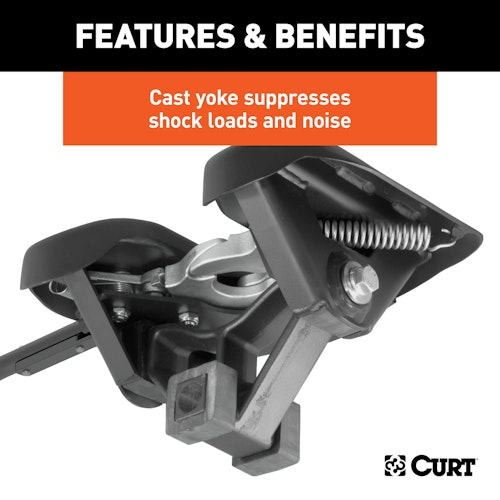

The CURT A25 5th wheel hitch offers smoother, quieter towing for your home-away-from-home, combining the patented technology of our A-series, an easier mounting system and the power of a 25K 5th wheel hitch. Like our A16 and A20 hitches, this 25K 5th wheel hitch uses a patented cast yoke to allow for unimpeded head movement, while providing exceptional stability for the trailer. The yoke has a set of poly-torsion inserts to suppress shock loads and reduce excessive noise, and the head features high-strength, interlocking jaws to give the trailer stability and the freedom to pivot and swivel as needed. This A25 5th wheel hitch also comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on a Ford truck with the truck bed puck system. The legs mount directly into the four-point mounting system, allowing the CURT A25 hitch to be installed quickly and easily. The most unique feature of these legs is their quarter-turn anchoring system. The variable-position anchors allow the 5th wheel hitch head to easily drop into the puck system, and with a quarter-turn, the hitch can be installed or removed as needed. The anchors can also be adjusted to eliminate any chucking noises. Once installed, the A25 is fast and simple to operate. It features an extra-wide head opening to increase the coupling area for the trailer, and it has a lockable, single-throw handle that self-resets to the ready-to-couple position after uncoupling. To make coupling even easier, it is equipped with a coupling indicator that is visible from the truck cab. The indicator shows the status of the connection and eliminates the need for you to check multiple times while coupling. To protect the A25 5th wheel hitch against rust, wear and whatever other threats might impede your cross-country tour, it comes with a carbide black powder coat finish and a limited lifetime warranty. We also test the A25 for safety in accordance with SAE J2638 to ensure reliability for the road ahead.
- Fits Ford long-bed pickups with the OEM truck bed puck system
Information:
Fits Ford long-bed pickups with the OEM truck bed puck system
Application Summary:
| Year |
Make/Model |
| 2011-2025 |
Ford F-250 Super Duty |
| 2011-2025 |
Ford F-350 Super Duty |
| Attributes |
| California Proposition 65 |
Yes |
| Color |
Black, Black |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Country of Origin (Primary) |
CN |
| Finish |
Carbide Black Powder Coat |
| Finish - XA |
CARBIDE BLACK POWDER COAT, CARBIDE BLACK POWDER COAT |
| GTIN |
00612314042937 |
| Gross Trailer Weight |
24000 lbs. |
| Gross Trailer Weight (GTW) |
24,000 LB, 24,000 LB |
| Gross Trailer Weight (lbs.) |
24000 |
| Gross Trailer Weight(GTW) |
Up to 24,000 LB |
| Harmonized Tariff Code (Schedule B) |
8708998180 |
| Hazardous Material Code |
N |
| Installation Height |
13 IN - 17 IN, 13 IN - 17 IN |
| Item Class - XA |
OBS, OBS |
| Item Height - XA |
0.000, 14.000 |
| Item Length - XA |
0.000, 24.000 |
| Item Width - XA |
0.000, 17.750 |
| Life Cycle Status Code |
Available to Order |
| Master Case Height Inches - XA |
14.000 |
| Master Case Length Inches - XA |
30.500 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
159.000 |
| Master Case Width Inches - XA |
24.000 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| NAFTA Preference Criterion Code |
B |
| Pallet Cases Per - XA |
1 |
| Pallet Cases Per Layer - XA |
1 |
| Pallet Layer of Cases - XA |
1 |
| Pallet Qty - XA |
1.000 |
| Pallet Total Height Inches - XA |
0.000, 14.000 |
| Pallet Total Weight Per - XA |
0.000, 184.000 |
| Parcel Allowed - XA |
No, No |
| Product Weight - XA |
0.000, 158.000 |
| Rate Class - XA |
70.0, 125.0 |
| Retail Height - XA |
14.000, 14.000 |
| Retail Length - XA |
24.000, 24.000 |
| Retail Width - XA |
17.750, 17.750 |
| SDR Required Flag |
N |
| Sales Family Code - XA |
FIFTH, FIFTH |
| Sales Family Description - XA |
FIFTH WHEEL, FIFTH WHEEL |
| Sales Group Description - XA |
25K FIFTH WHEEL, 25K FIFTH WHEEL |
| Shipping Weight - XA |
158.000, 158.000 |
| Side Application Type Description - XA |
Blank, Blank |
| Tariff 301 - XA |
Yes, Yes |
| Truckload Cases Qty - XA |
20 |
| Truckload Pallets Qty - XA |
20 |
| Truckload Units Qty - XA |
20 |
| Truckload Volume Cubic Feet - XA |
0.00000, 0.00000 |
| Truckload Weight - XA |
3680 |
| Vertical Load |
6,250 LB, 6250 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
