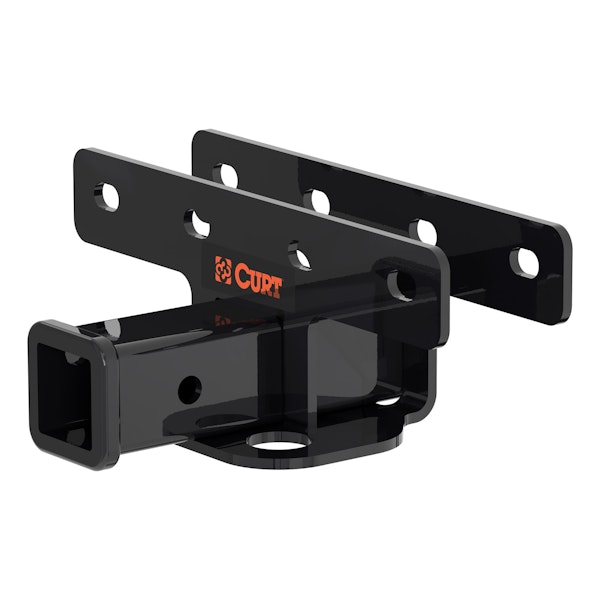

CURT 13564 Class 3 Trailer Hitch, 2" Receiver, Select Jeep Wrangler JL EcoDiesel
CURT 13564 Class 3 Trailer Hitch, 2-Inch Receiver, Fits Select Jeep Wrangler JL EcoDiesel
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Wrangler JL EcoDiesel (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
  • Rated to 3,500 lbs. gross trailer weight and 350 lbs. tongue weight
  • Limited lifetime warranty (one-year finish, one-year parts)
  • Made in USA (may include imported hardware)
  • Compatible with weight distribution hitch (4,000 lbs. WD / 400 lbs. WDTW)
  • Engineered with a vehicle-specific design for a custom fit
  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a durable high-gloss black powder coat finish
  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Equipped with an open-back receiver for easy cleaning

Information:

Equipped with an open-back receiver for easy cleaning

Application Summary:

Year Make/Model
2020-2023 Jeep Wrangler
Attributes
California Proposition 65 Yes
Class ID 3
Container Volume Cubic Feet - XA 0.00000
Container Volume Cubic Meter - XA 0.00000
Country of Origin (Primary) US
Finish - XA GLOSS BLACK POWDER COAT
GTIN 00612314056071
Gross Trailer Weight 3500 lbs.
Harmonized Tariff Code (Schedule B) 8708998180
Item Class - XA MFH
Item Height - XA 0.000
Item Length - XA 0.000
Item Width - XA 0.000
Life Cycle Status Code Available to Order
Main Body Shape Square
Master Case Height Inches - XA 0.000
Master Case Length Inches - XA 0.000
Master Case Volume Cubic Feet - XA 0.00000
Master Case Weight Lbs - XA 0.000
Master Case Width Inches - XA 0.000
Material - XA Carbon Steel
Mount Type Description - XA Not Applicable
NAFTA Preference Criterion Code B
Pallet Qty - XA 36.000
Pallet Total Height Inches - XA 0.000, 0.000
Pallet Total Weight Per - XA 0.000, 0.000
Parcel Allowed - XA Yes, Yes
Position Rear
Price Code - XA 12.5, 13
Product Weight - XA 0.000, 0.000
Rate Class - XA 70.0, 70.0
Receiver Tube Size 2 IN, 2 IN
Retail Height - XA 8.250, 8.250
Retail Length - XA 15.125, 15.125
Retail Width - XA 11.875, 11.875
SDR Required Flag N
Sales Family Code - XA HITCH, HITCH
Sales Family Description - XA HITCH, HITCH
Sales Group Description - XA CL 3, CL 3
Shipping Weight - XA 15.000, 15.000
Side Application Type Description - XA Not Applicable, Not Applicable
Tariff 301 - XA No, No
Tongue Weight (TW) 350 LBS, 350 LBS
Truckload Volume Cubic Feet - XA 0.00000, 0.00000
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts), Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Weight Carrying Capacity (WC) 3,500 LBS, 3,500 LBS
Weight Distribution (WD) 4,000 LBS, 4,000 LBS
Weight Distribution Tongue Weight (WDTW) 400 LBS, 400 LBS
